Bradley and Hewletts Creek

Stormwater runoff is the primary cause of water quality impairment or water quality that doesn’t meet shellfishing standards, in the Bradley and Hewletts Creek watersheds. Intense urbanization has hardened the natural landscape. Instead of soaking into the ground and being taken up by vegetation, a much larger amount of rain now quickly runs over the urban landscape and into the creeks. This stormwater runoff picks up bacteria and transports it to the creeks, causing shellfish closures and swimming advisories.

The Coastal Federation, the City of Wilmington, the Town of Wrightsville Beach, and project partners developed a watershed restoration plan in 2007 that focuses on reducing the amount of stormwater runoff transporting bacteria and pollutants into the creeks. Partners recognize that restoring water quality in these creeks will be a long-term, multi-decade effort.

The Federation continues to lead a collaborative effort that is now focused on implementing the watershed restoration plan by designing and installing stormwater retrofit projects throughout the watersheds. Working with Wilmington’s Heal Our Waterways program as well as Wrightsville Beach, N.C. Department of Transportation, New Hanover Soil and Water Conservation District, UNC Wilmington, and other community partners, the federation is working to reduce the volume of stormwater runoff flowing into Bradley and Hewletts Creeks. See some of our exciting progress below.

Recent Projects

UNCW rain garden after rain - June 2022

UNCW Leutze Hall Rain Garden (2022)

The front lawn of Leutze Hall at UNCW was transformed into a rain garden that now soaks in 14,000 gallons of rain for every 3.4 inches that fall. Coastal Stormwater Services, Inc. worked with the Federation and UNCW, and Heal Our Waterways to design and build the garden. The project was funded by the N.C. Division of Water Resources, EPA 319 program in partnership with Heal Our Waterways.

UNCW Suite Services Loop Rain Garden (2020)

Working with UNCW staff and students, City of Wilmington Heal Our Waterways Program, engineering firm Coastal Stormwater Services, Inc., and Flora Landscapes, we designed and built a shallow landscaped rain garden on Suite Services Loop on the UNCW campus. It was completed with native plants in the fall of 2020 and will now help slow down, spread out and soak in the rain. About one million gallons of polluted runoff will be reduced on campus with this project annually.

The Workshop Wrightsville Beach (2020)

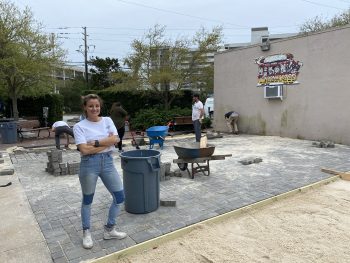

Working with the Federation, the Town of Wrightsville Beach, and adjacent businesses, the Workshop coffee shop completed a water quality project in March 2020, replacing a compacted dirt/turf community gathering area with 1,200 ft2 of pervious pavers. This retrofit project greatly enhanced the aesthetics and welcoming nature of this popular destination in Wrightsville Beach. In addition, it significantly reduces the amount of polluted runoff from the businesses’ parking areas, rooftops, etc., protecting the water quality of nearby Banks Channel, which is heavily used for swimming, boating, and fishing.

UNCW parking lot retrofit

UNCW Parking Lot Retrofits (2020)

The Federation worked with UNCW, the City of Wilmington Heal Our Waterways, and New Hanover Soil and Water Conservation to reduce runoff flowing from two campus parking lots. Sections of the asphalt lot around select drop inlets were removed and replaced with permeable pavement. A total of 11 storm inlet retrofits were constructed that now infiltrate average rainfall events.

Arboretum Infiltration Construction Phase I

New Hanover County Arboretum Innovation Infiltration (2019)

The Federation partnered with the New Hanover County Cooperative Extension to design and build an innovative system to capture stormwater runoff from the Arboretum’s roof-tops, paved areas, and parking lots. Before the project was installed, the stormwater runoff was flowing through storm pipes into Bradley Creek. Now the runoff is captured and redirected to an infiltration system and bioretention area under sandy soil where it slowly soaks into the ground.

UNCW

UNCW Rain Gardens (2019)

The Federation worked with UNCW and the City of Wilmington’s Heal Our Waterways to design and construct rain gardens on the UNCW campus with Section 319 funding and funds from Heal Our Waterways. The gardens were planted by community volunteers, UNCW faculty and staff, Federation staff, and Heal Our Waterways.

Wrightsville Beach Animal Hospital

Wrightsville Beach Animal Hospital (2019)

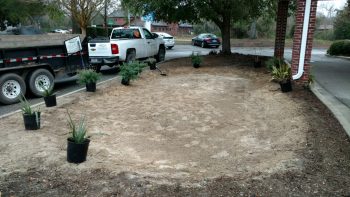

Project partners designed, constructed and planted a 240 square foot rain garden at the Wrightsville Beach Animal Hospital in the Bradley Creek watershed. The site not collects rainwater from the roof and directs it to the rain garden where it soaks in. Coastal Stormwater Services, Inc. provided engineering for the site and Flora Landscaping excavated and planted the garden with native flowering plants and shrubs.

Rain Barrels

Palmetto Point and Greenville Loop Road (2019)

Project partners worked with residents of the Palmetto Pointe subdivision to install a series of rainwater harvesting systems throughout the neighborhood.  They installed seven 50-gallon rain barrels, one 85-gallon barrel, one 100-gallon barrel and a 500-gallon cistern that all reduce the volume of runoff entering nearby Bradley Creek and provide a source of water for later use.

New Hanover County Arboretum and Waterman’s Brewing Company (2018)

Permeable concrete now replaces conventional asphalt at the New Hanover County Arboretum and Waterman’s Brewing Company, both of which are in Wilmington. The permeable paving projects at the Arboretum and Waterman’s Brewing are funded by an EPA Section 319 grant to install a series of stormwater projects in the Bradley and Hewletts Creek watersheds. The arboretum project began early 2018 and was completed in summer 2018. The Waterman’s Brewing project began the first week of May 2018.

Permeable pavement is installed at Hanover Seaside Club.
Permeable pavement is installed at Hanover Seaside Club.

Hanover Seaside Club (2018)

This retrofit project includes two sites where impervious paving was replaced by permeable paving at a public parking lot and at Hanover Seaside Club, both in Wrightsville Beach. These projects were funded by the N.C. Clean Water Management Trust Fund.

A section of the public parking lot was replaced with permeable pavement in November 2017. The permeable pavement infiltrates polluted surface runoff from public streets and a portion of the existing parking lot. Next, multiple street and parking lot drains were disconnected from stormwater outfall pipes along Banks Channel and redirected so that runoff moving through the permeable pavement is directed to an engineered infiltration system located beneath the existing parking lot. Rather than allowing runoff to flow into Banks Channel, this system redirects runoff to soak into the ground.

Project History

Wrightsville Beach Public Parking Lot (2017)

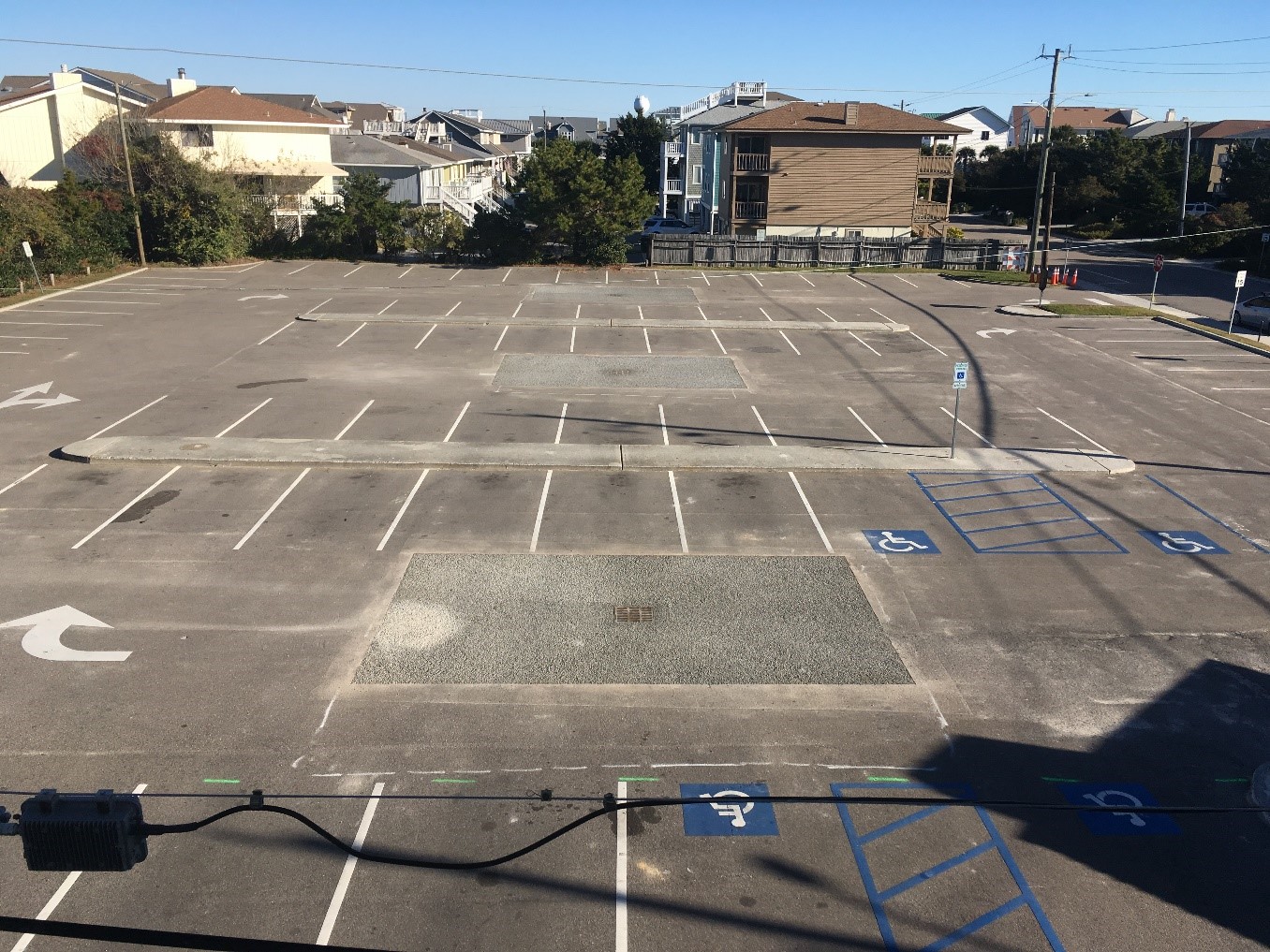

This project was designed to remove and replace existing impervious paving around 3 existing stormwater drop-inlet drains within a large public parking lot within the Town of Wrightsville Beach. The  impervious sections were replaced with 3- 16′ X 26′ sections of pervious pavement.  The project was successfully completed in 2017, disconnecting the drain and pipe pathways for polluted stormwater runoff from entering nearby Banks Channel. Now, runoff generated from this large parking lot and adjacent buildings is infiltrated by relatively small sections of pervious pavement around the drains, leaving the majority of the parking lot as impervious pavement.

Blockade Runner Beach Resort (2017)

Working with the Federation, the Blockade Runner in Wrightsville Beach disconnected two stormwater outfall pipes that discharged runoff from the 2-acre resort into Banks Channel. The outfall pipes were redirected into a series of pipes underneath the soundside lawn of the resort. This new system allows polluted runoff to infiltrate the sandy soils below. A 2,100-gallon cistern was also installed and collects rainwater for irrigation, reducing the resort’s municipal water use by around 25 percent.

Read more: Blockade Runner stormwater project now complete

EPA Rain Catcher Award (2017)

The federation, on behalf of a collaborative team, including the North Carolina National Estuarine Research Reserve (NCNERR), received a regional 2017 Rain Catcher Award from the Environmental Protection Agency (EPA) Region 4 for various innovative stormwater runoff infiltration projects in Wrightsville Beach. These include: regrading an area in front of a restaurant in order to infiltrate runoff that formerly flowed into a drain; two curb cuts that redirect 8,600 square feet of runoff into a grassy median; installation of reverse storm inlets that divert runoff into existing grassy areas to infiltrate runoff; disconnecting a street drain system into a rain garden; check dams; pervious pavement; and soundside street-end projects that redirect flow from swimming waters, including the construction of an innovative perforated infiltration system/cistern design that redirects runoff from recreational waters at the Blockade Runner Beach Resort.

Read more: Wrightsville Beach stormwater runoff projects wins regional award from EPA

Glen Meade Neighborhood (2017)

The 0.26-acre bioretention site collects stormwater runoff from 33 acres of homes and yards in the Glen Meade subdivision in Wilmington. A bioretention site is a basin covered with native plants, which allows stormwater runoff to soak into the ground rather than flow straight into local waterways. Five employees from RBC Wealth Management helped plant 200 native plants at the site in 2017.

RBC Wealth Management helped the City of Wilmington and federation plant a bioretention site in Glen Meade.

Raintree Neighborhood (2016)

A stormwater ditch was converted into a meandering wetland to reduce flooding and runoff in the Raintree neighborhood in Wilmington. The wetland treats approximately 2,628 cubic feet of stormwater runoff that makes it way into Hewletts Creek, and eventually Masonboro Sound, annually. The federation secured funding from the National Estuarine Research Reserve (NCNERR) to work with firm WithersRavenel to design the project.

Additionally, sections of the neighborhood streets and a series of driveways were retrofitted with porous paving to reduce the volume of runoff flowing over these once-hardened surfaces. The City of Wilmington received an award from the Lower Cape Fear Stewardship Development Coalition for this project.

Read more: Award-winning wetland to treat runoff, prevent flooding

Wrightsville Beach Loop Projects (2014)

Construction of Wrightsville Beach Loop Projects — 2014

Existing turf areas within the Town of Wrightsville Beach are re-purposed into garden areas that feature native plantings, and capture polluted stormwater before it reaches the adjacent recreational waters.
Existing turf areas within the Town of Wrightsville Beach are re-purposed into garden areas that feature native plantings, and capture polluted stormwater before it reaches the adjacent recreational waters.

By late 2014, the construction of six stormwater reduction projects was completed in the watersheds within Wrightsville Beach. The measures were designed to be low cost, relatively simple and replicable within any town or city. The projects resulted in the capture of polluted stormwater from roads, driveways and other impervious areas. Instead of flowing directly into drains and creeks, stormwater is instead redirected away into rain gardens or grassy areas, where the pollutants are filtered out as it soaks into the ground.

The projects include construction of berms to slow down the flow of runoff in existing swales, the addition of curb cuts to direct runoff to existing grassy areas, a vegetated rain garden, larger bioretention areas and installation of permeable paving.

Monitoring results from UNC Wilmington indicated that most of the retrofit sites along the Wrightsville Beach Loop and Iula Street (below) resulted in a 50 percent to 90 percent reduction in stormwater volumes.

A map and details about the projects are both available at walktheloop.org. Walk the Loop for Clean Water is a 1-mile, self-guided walking tour of these innovative projects. The website features a history of the project, a map of the entire trail and station-by-station information that users can scroll through on their phones while taking the tour.

lula Street (2014)

The Lula street project disconnects street drains carrying polluted stormwater directly into Banks Channel, and allows the water to instead be held and slowly filtered into the sandy soils on the property.
The lula street project disconnects street drains carrying polluted stormwater directly into Banks Channel, and allows the water to instead be held and slowly filtered into the sandy soils on the property.

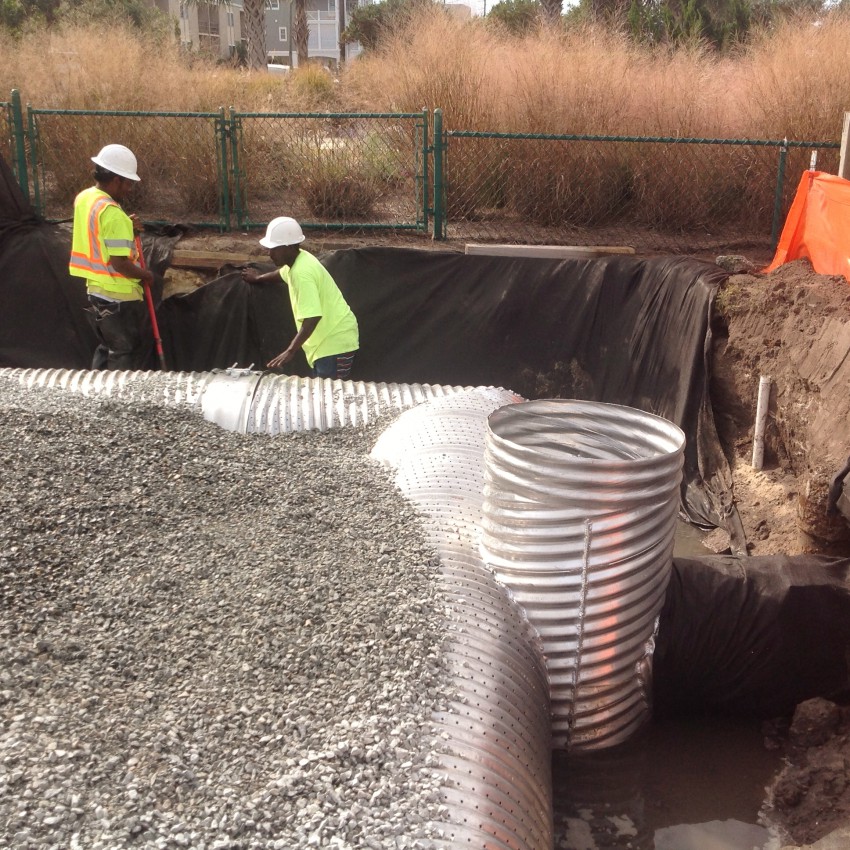

In November 2014, the Town of Wrightsville Beach had a metal infiltration device installed beneath the ground at the end of a pipe along Iula Street on the south end of the beach. This innovative system disconnects street runoff from one of a number of stormwater outfall pipes along Waynick Avenue, and instead allows it to be stored within an infiltration chamber and slowly soak into the ground through a series of perforated pipes.

School Rain Gardens (2009-2011)

Bradley Creek Elementary School Rain Garden — 2010

Construction of the Bradley Creek Elementary School rain garden began in 2010 and was completed in 2011. The Federation continues to hold workdays at the rain garden, which is used as an outdoor classroom for the students.

This rain garden features four best-management practices (BMPs):

  • BMP #1 – This stormwater BMP is a bioretention area with two cells totaling 3,400 square feet. The project treats stormwater runoff from a portion of the school parking lot and front yard. This portion of the project was completed in May 2010.
  • BMP #2 – This stormwater BMP is an 11,000-square-foot stormwater wetland located behind the school adjacent to the soccer field. The project area contained a shallow vegetated swale that transported sheet flow from the school’s playing fields and some of the courtyard into a boundary ditch draining to Hewletts Creek. This portion of the project was completed in November 2010.

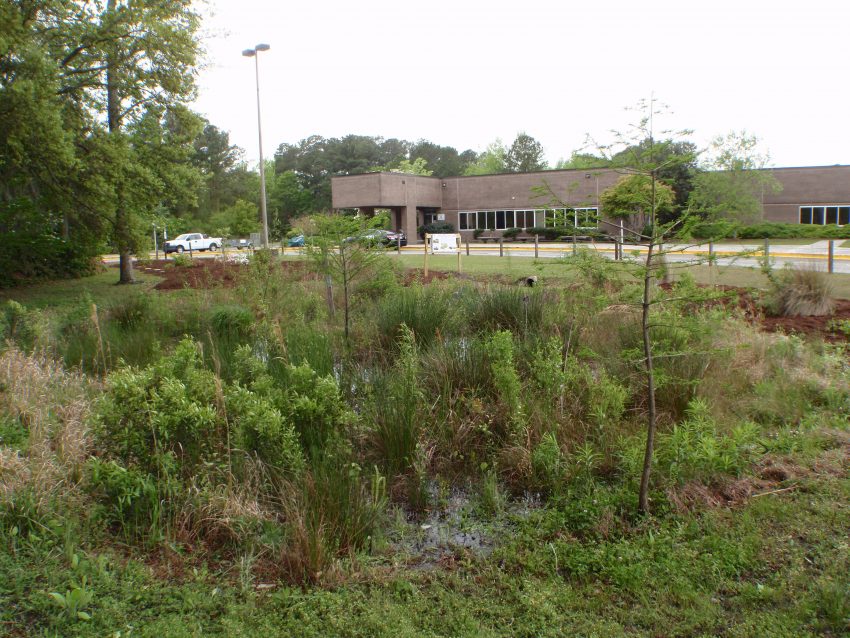

  • BMP #3 – This stormwater BMP is a 1,940-square-foot stormwater drought-tolerant wetland coupled with an overflow area with a raised stormwater outlet and enhanced vegetated area located in front of the school. The project area has a history of collecting a significant amount of water after rains (piped in and from sheet flow) and holds standing water for some time. This portion of the project was completed in November 2010.
  • BMP #4 – This stormwater BMP is a 7,812-square-foot bioretention area in the grass near the main school entrance on Greenville Loop Road. The project was completed in May 2011.

Alderman Elementary School Rain Garden — 2009

Construction of the Alderman Elementary School rain garden began in 2009 and was completed in 2010. The federation continues to hold workdays at the rain garden, which is used as an outdoor classroom for the students.

The 2,500-square-foot rain garden/bioretention area treats stormwater runoff from a portion of the school roof, a pedestrian entrance area and walkways, a school entrance driveway, and the school parking lot.

Read more

Walk the Loop for Clean Water

Walk the Loop for Clean Water is a 1-mile, self-guided walking tour of the innovative projects on Wrightsville Beach Loop and Iula Street. The website features a history of the project, a map of the entire trail and station-by-station information that users can scroll through on their phones while taking the tour.
